Specifications

Material: Aluminum, Iron
Color: Black, Silver
Style: Modern
Surface Treatment: Sandblasting, Painting, Rust Prevention Shot Blasting
Assembly Required: Yes
Displacement: 80CC
Number of Teeth: 44

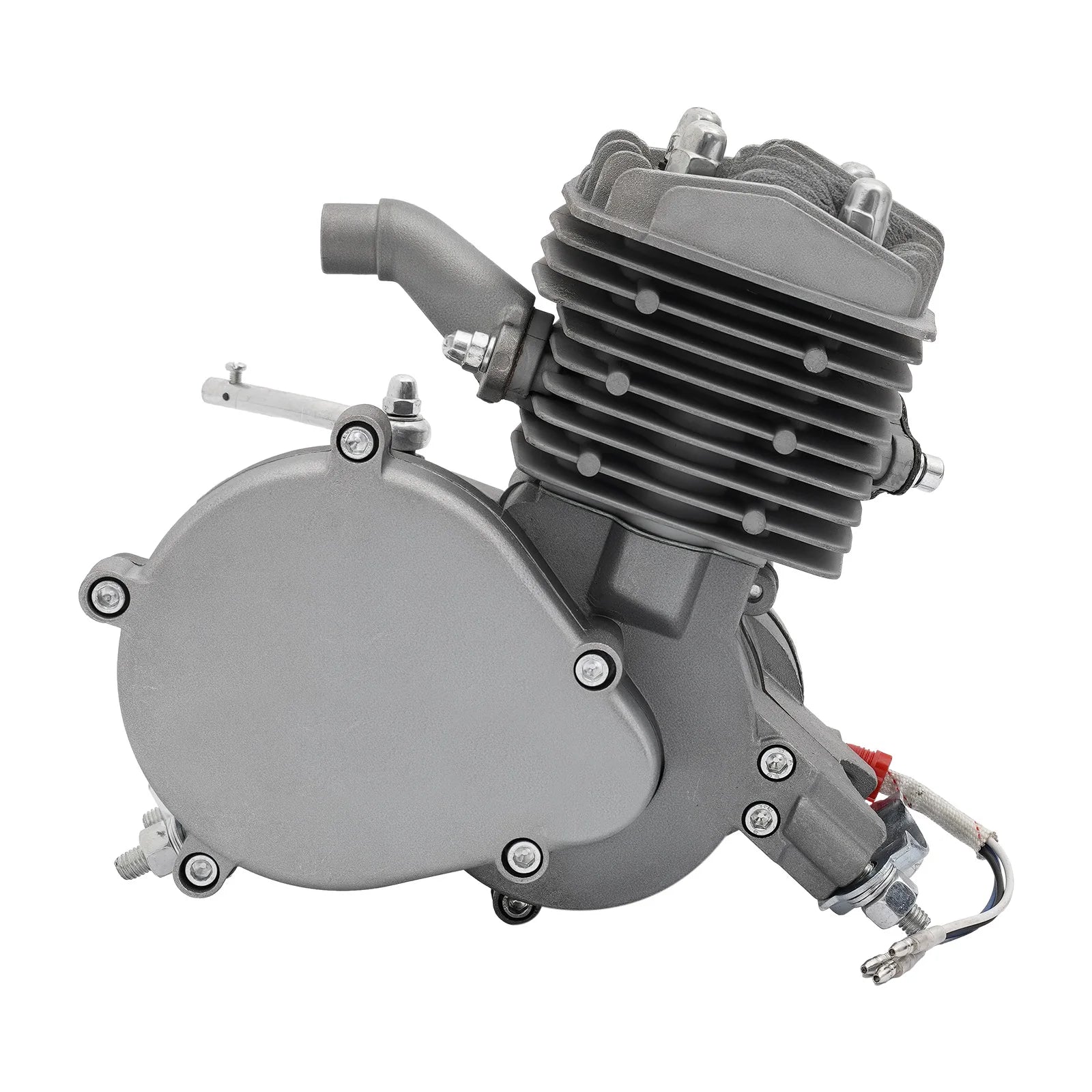

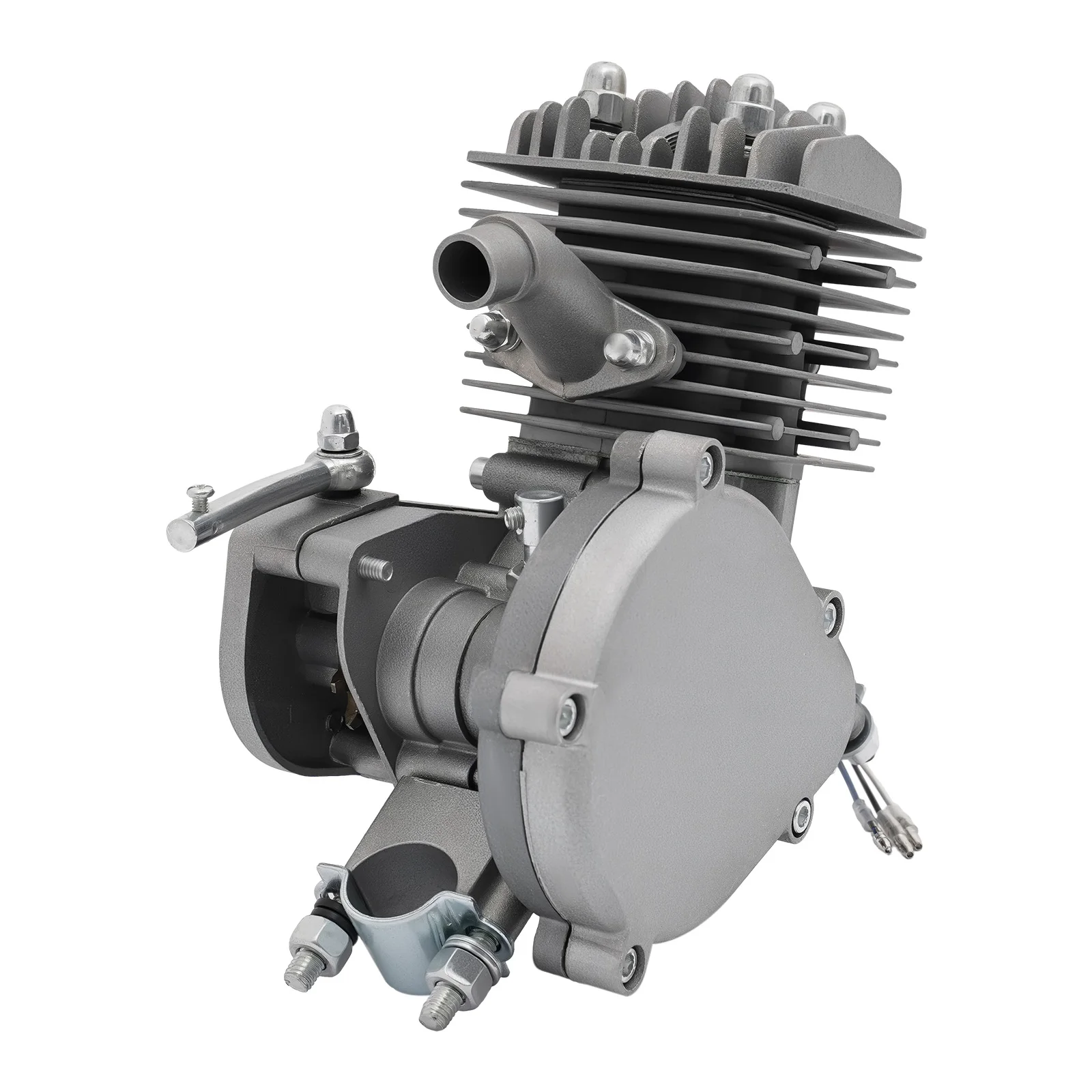

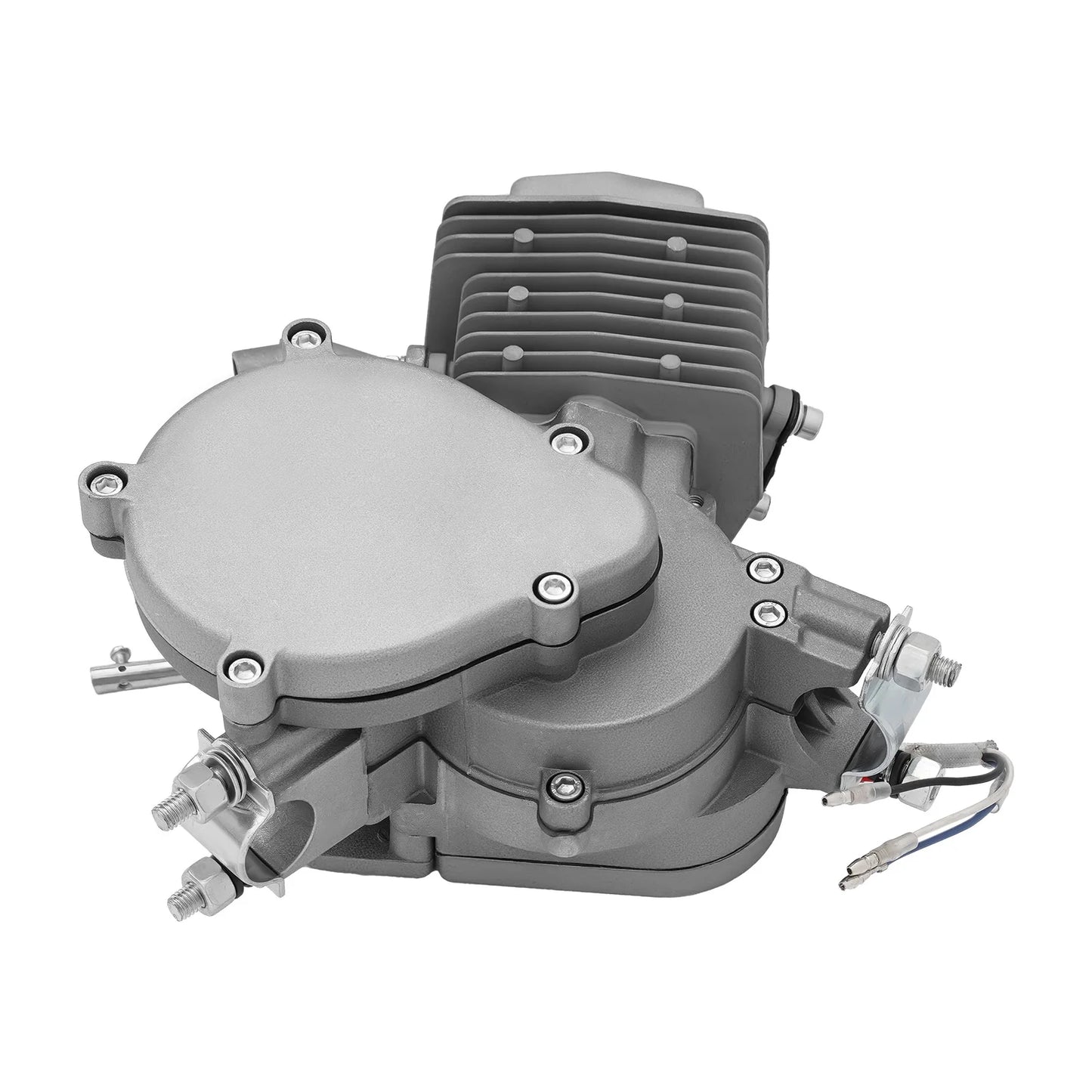

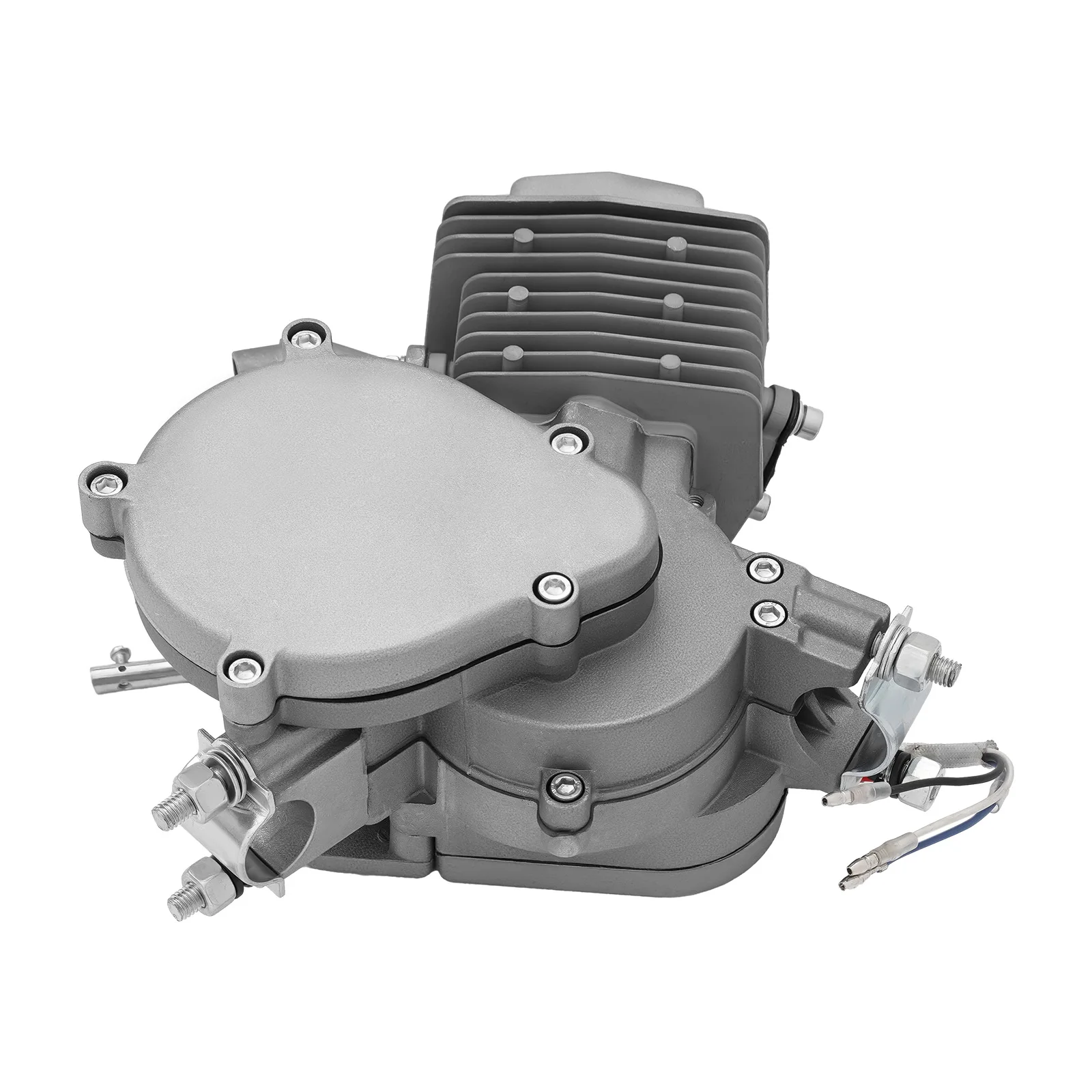

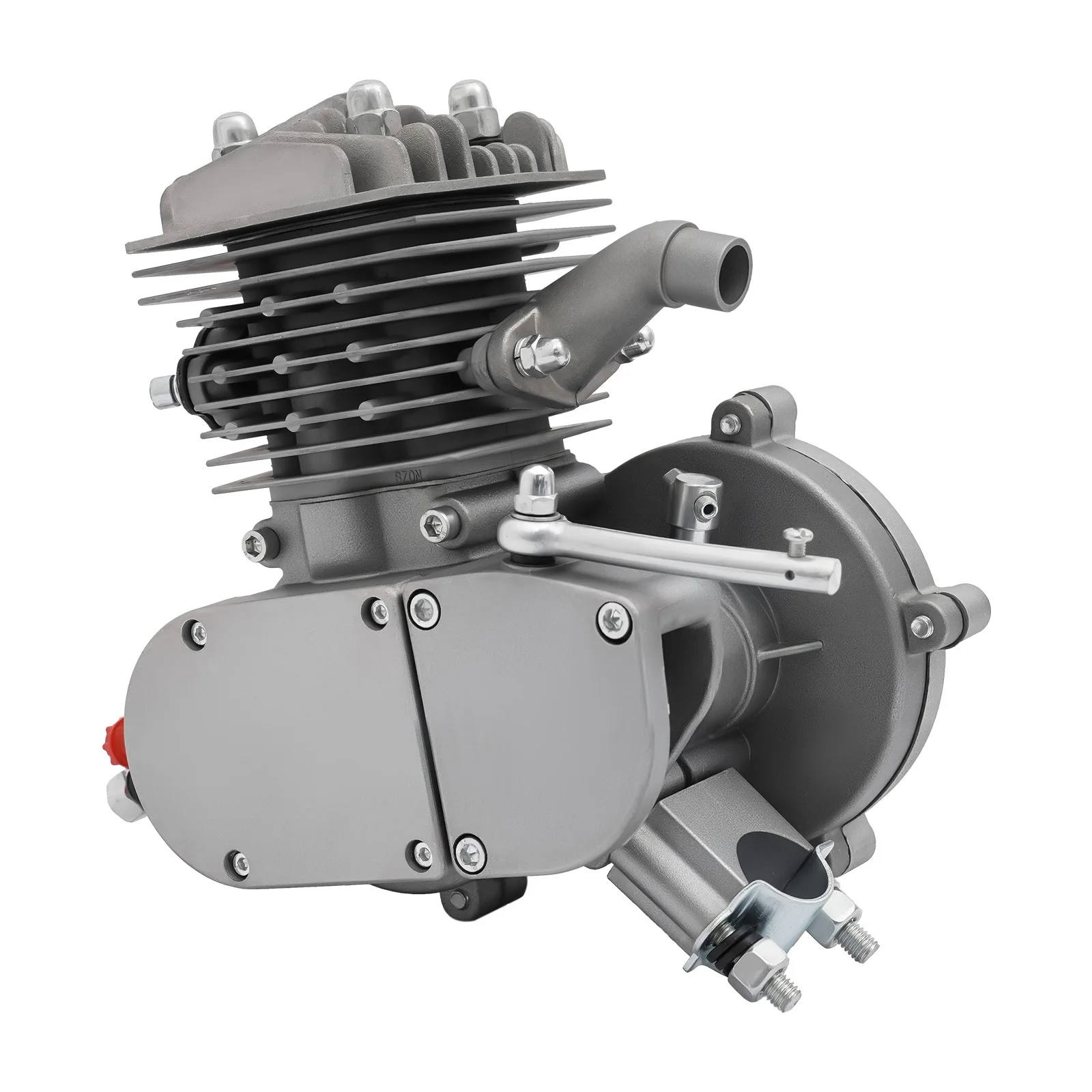

Mode of Engine: Single Cylinder, Air-cooling, 2-stroke
Ignition Mode: CDI
Maximum Speed: 40km/24.8mi/h
Fuel Tank Capacity: 2L/0.53gal
Fuel Consumption: 2.5L/0.66gal/100km
Max. Load Capacity: 180kg/397lbs
Noise: About 75 decibels
Fuel Number: #92, #95
Fuel Type: Mixed Fuel(16 Gasoline: 1 Two-stroke Engine Oil During Break-in Period, 20 Gasoline: 1 Two-stroke Engine Oil After)
Gross Weight: 10.85kg/23.9lbs
Net Weight: 9.9kg/21.82lbs
Chain Guard: 41*7.7cm/16.14*3.03in

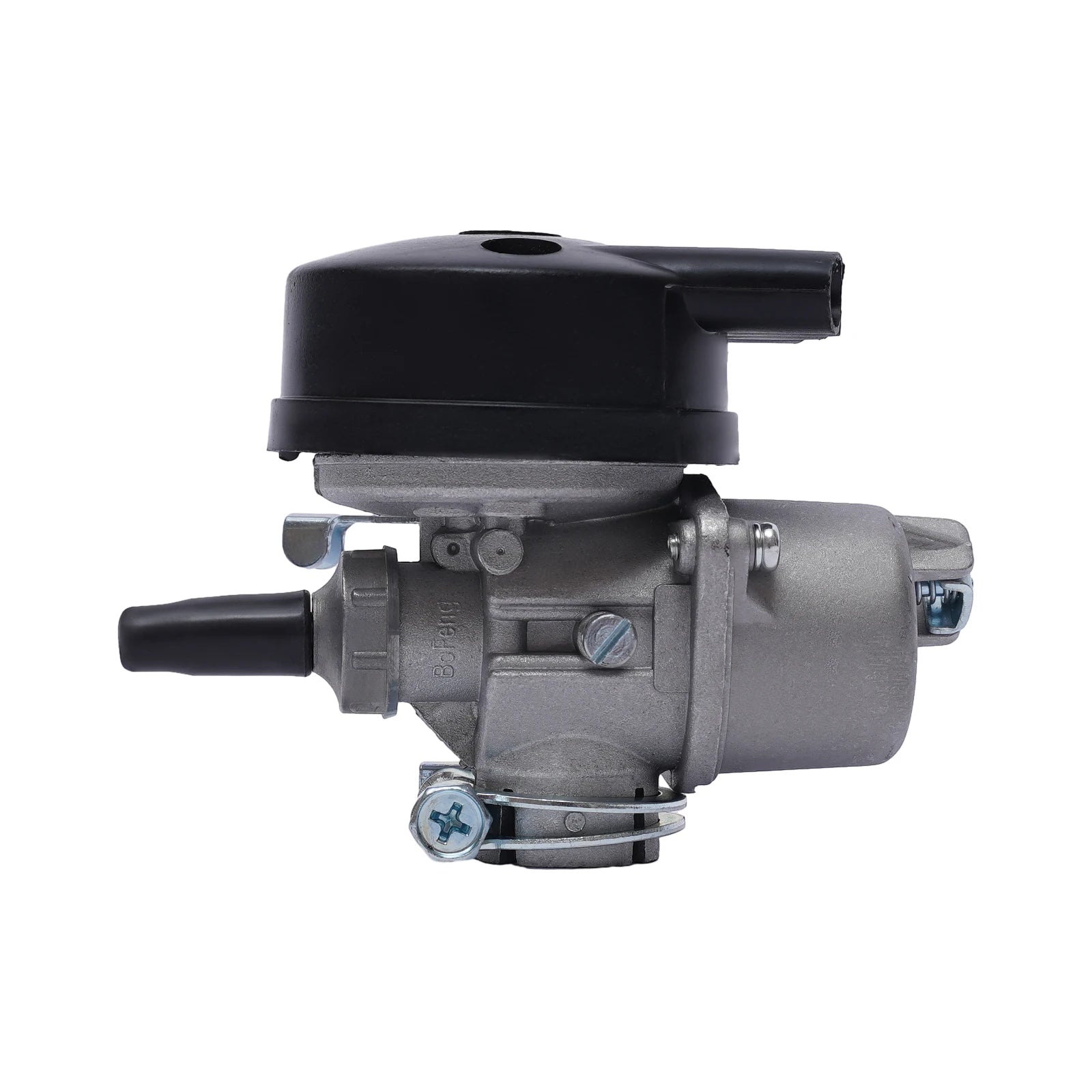

Carburetor Size: 7*13cm/2.75*5.11in
Fuel Tank Size: 31*18*15cm/12.2*7.08*5.9in
Gear Diameter: 18cm/7.08in
Engine Size: 24*24cm/9.44*9.44in
Package Size: 42.5*42.5*20cm/16.73*16.73*7.87in

Details

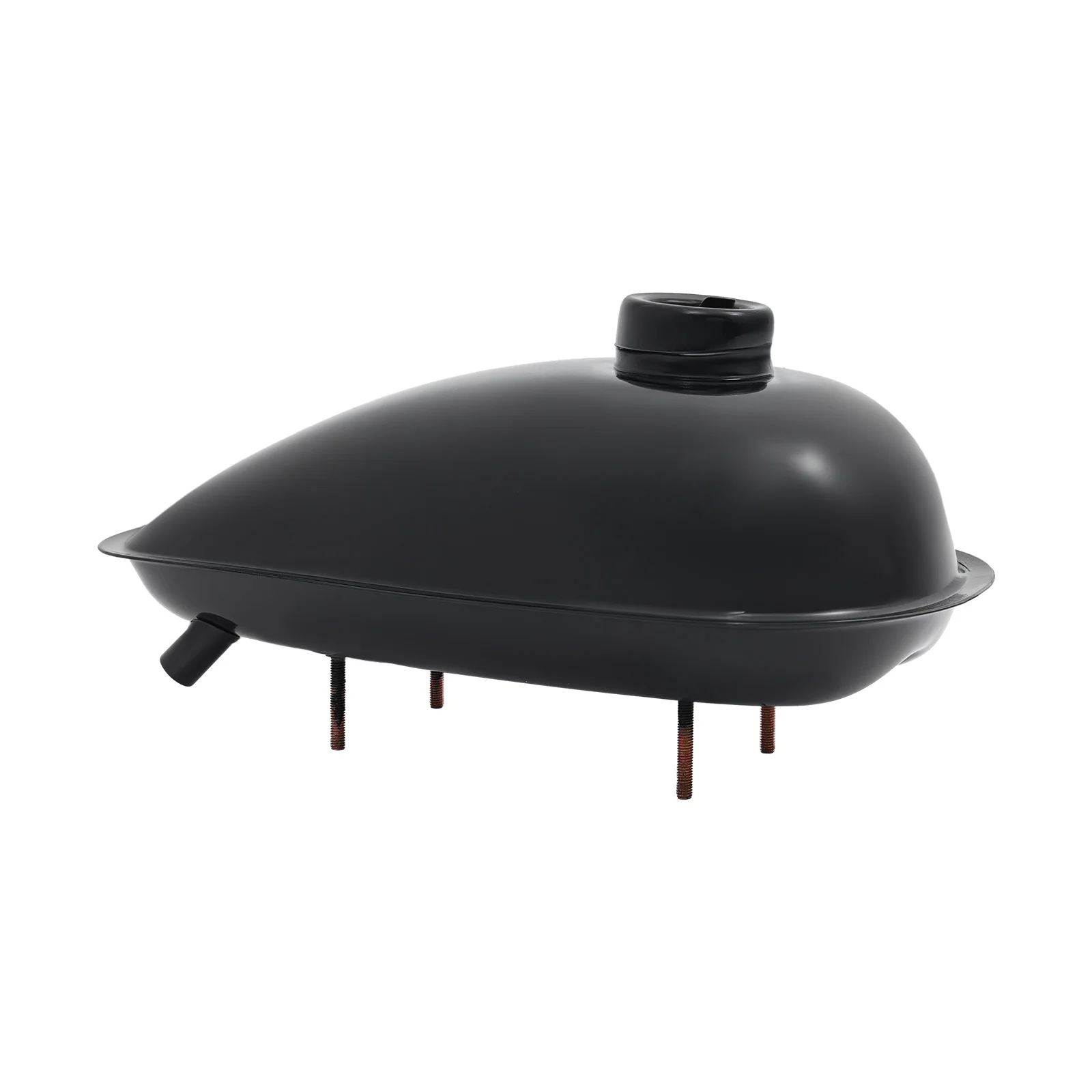

Black Fuel Tank: The black fuel tank can effectively block the evaporation caused by sunlight on the fuel.

Rounded Corners: The various components treated with rounded corners take better care of your skin, so you don't have to worry about accidentally causing scratches during cycling.

Application

This product is suitable for most 26-inch or 28-inch bicycles with V-shaped frames and large triangular empty frames, such as mountain bikes, road bikes, gravel bikes, beach bikes, etc.

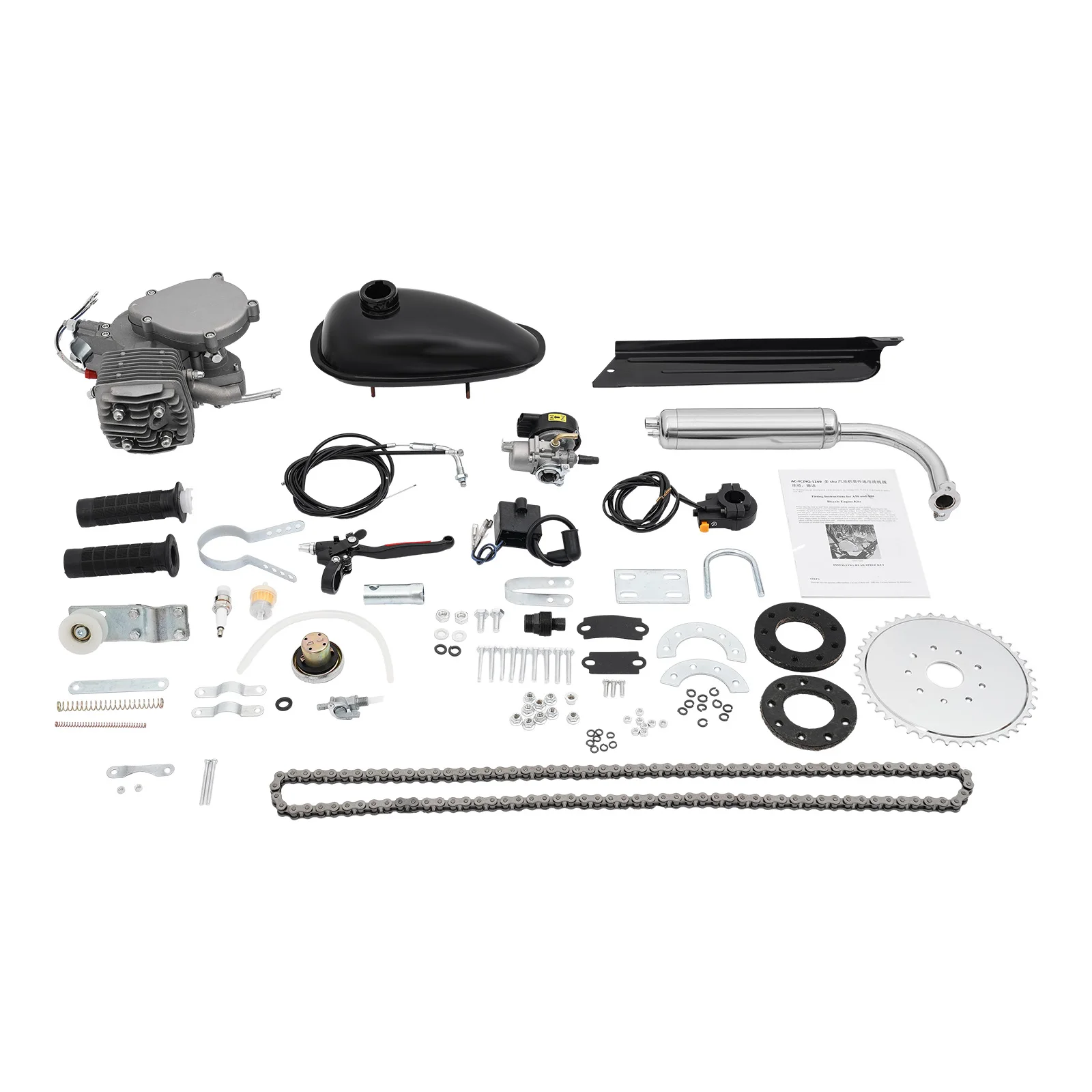

Package Included

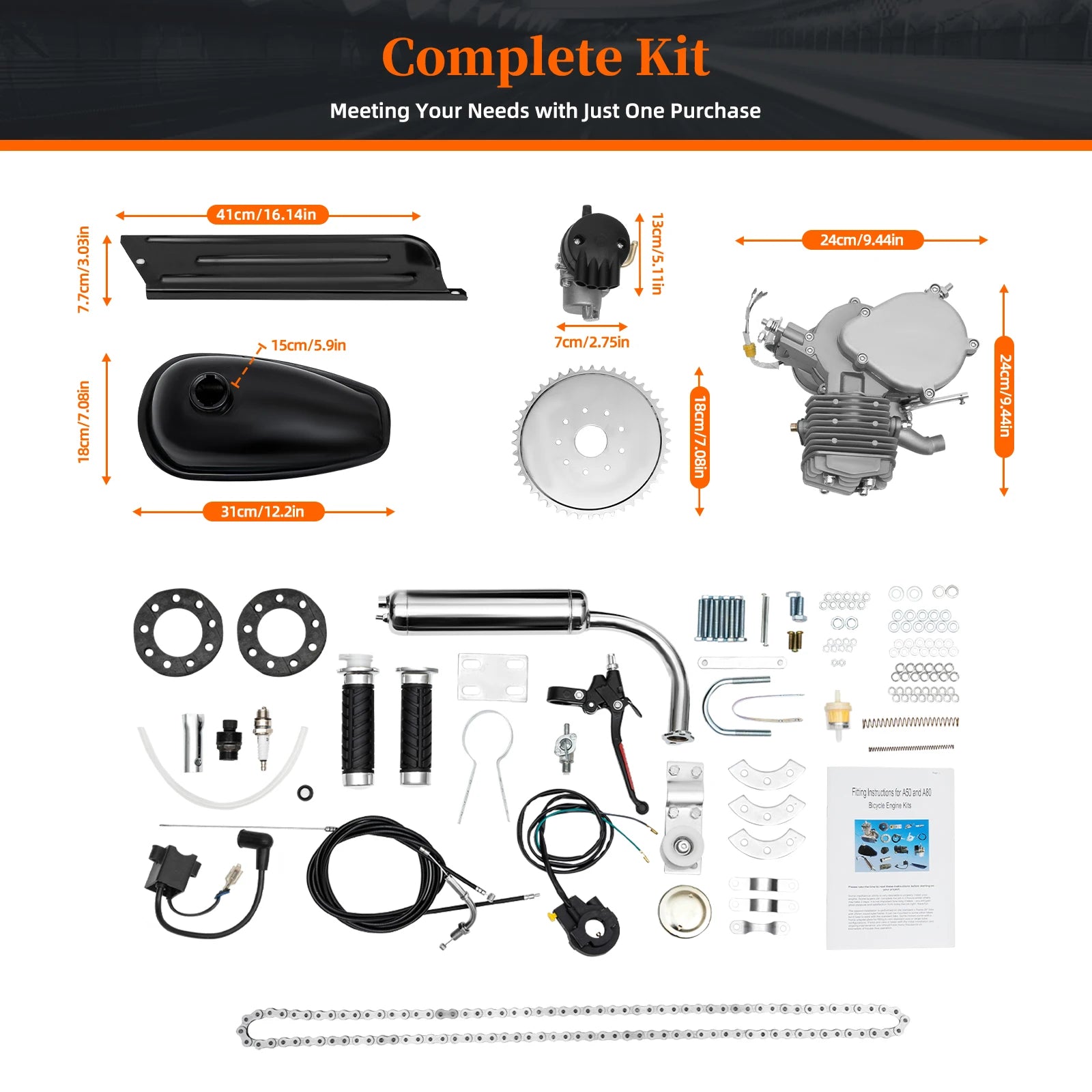

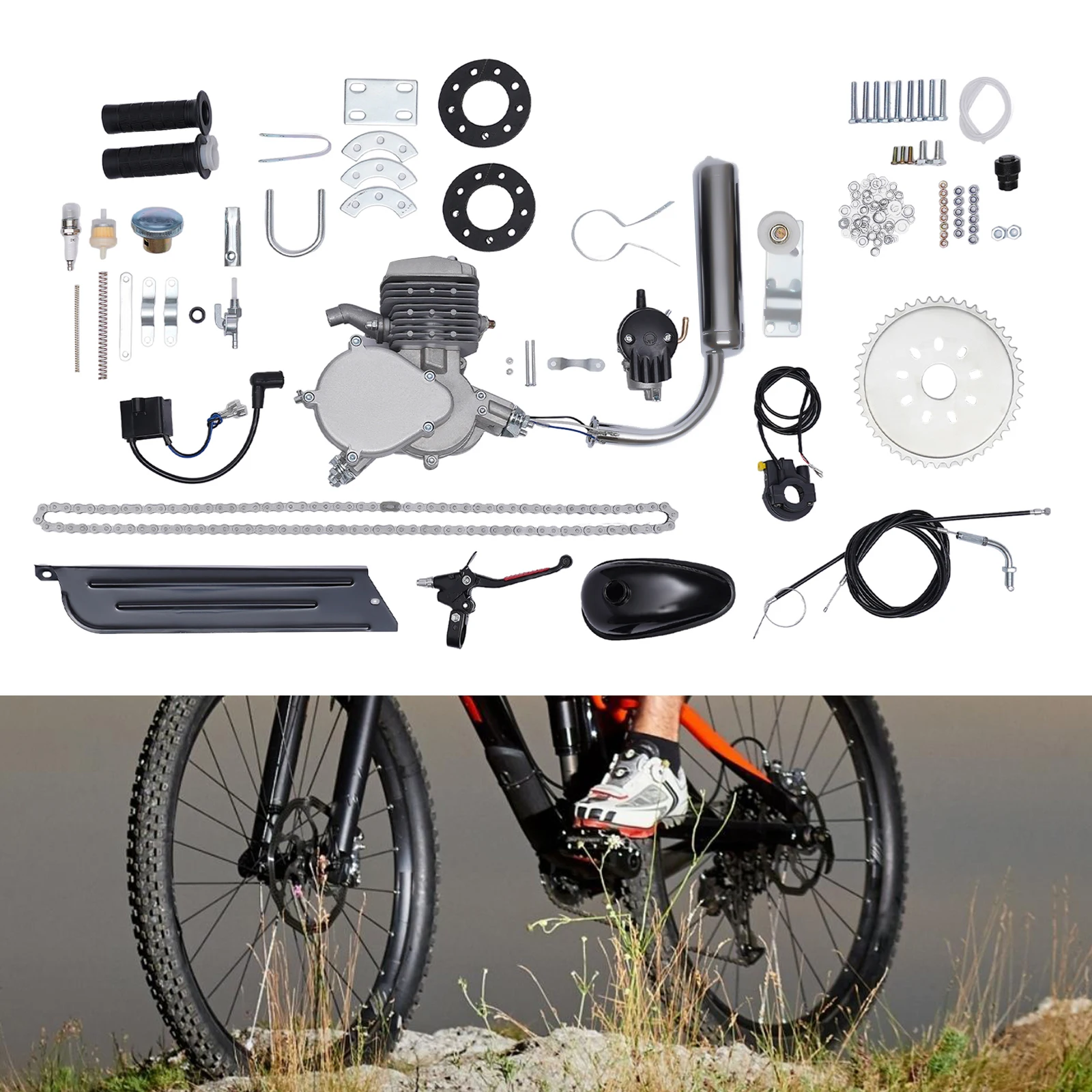

1*Bicycle Engine Kit
1*English Manual
All Accessories for Assembly

Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience.
2.Please note that professional installation is recommended.
3.Please note that this product requires the use of a mixture of gasoline and engine oil. During the first 500-kilometer break-in period, the ratio of gasoline to engine oil is 16:1, and after the break-in period, the ratio increases to 20:1.
4.Please note that during the running-in period, the speed should not exceed 20km/h. After the first 500 kilometers, the speed may increase to 35 kilometers per hour.
5.Please note that this product requires the use of advanced two-stroke motorcycle oil to ensure proper lubrication of the engine.
6.Please note that before adding fuel to the tank, make sure to mix fuel and engine oil, and do not add them separately.
7.Due to the need for fuel during the use of this product, please pay attention to fire safety.
8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
